A tie is a structural member that is being pulled from opposite ends. It is said that a tie “works in tension.” Columns are vertical, structural members of a structure. Columns stand perpendicular to the ground.
In this post
What does tie structure mean?
Introduction. In engineering, a tie is a linear structural component that has tension acting upon it, stretching it or pulling it apart. Ties can be made from any kind of material that is able to resist tension. In order to function properly, ties must be adequately anchored.
What is a tie and strut?
The part of the structure that has a tensile force acting on it is called a TIE and the part that has a compressive force acting on it is called a STRUT. WALL. The beam is held in position by a steel rod. The weight of the beam is stretching the rod (tensile force).
What is a tie in a truss?
Tension members in trusses are called ties and these are members which are being stretched. It is an industry convention that the arrows are shown pulling in on themselves. This is in contrast to the tension in a beam in which the tension forces pull outwards from the beam as shown in the bottom diagram.
What is tie in steel?
A tie, strap, tie rod, eyebar, guy-wire, suspension cables, or wire ropes, are examples of linear structural components designed to resist tension. It is the opposite of a strut or column, which is designed to resist compression. Ties may be made of any tension resisting material.
What is the difference between ties and stirrups?
Stirrups are used for shear and torsional reinforcement and have many different sections based on the need. You might have 4 stirrups spaced at 4-6″ in a large beam, or a single stirrup. Ties are typical in compression members like columns, and can be spaced apart or a continuous spiral.
What is tie civil engineering?
Tie bars are deformed rebars or connectors used for holding faces of rigid slabs in contact to maintain aggregate interlock. Tie bars are not load transferring device. For instance, tie bars are used in longitudinal joints at mid depth of concrete pavement. Generally it is made of epoxy coated steel.
What are struts in building?
Strut is a common name in timber framing for a support or brace of scantlings lighter than a post. Frequently struts are found in roof framing from either a tie beam or a king post to a principal rafter. Struts may be vertically plumb or leaning (then called canted, raking, or angled) and may be straight or curved.
What structures use struts and ties?
Strut-and-tie modeling is a rational approach for the design of Discontinuity regions (D-regions) in reinforced concrete structures; for instance, deep beams, corbels, beams with dapped end, beams with openings, joints and pile caps.
What is strut and tie in truss?
Strut and tie modelling (STM) is a simple method which effectively expresses complex stress patterns as triangulated models. STM is based on truss analogy and can be applied to many elements of concrete structures.
What is a ceiling tie?
The lowest member of a truss, usually horizontal which carries the ceiling construction, storage loads and water tank.
What is a tie element What is its importance?
an element or material that passes unchanged in amount. from the reactants to the products—a tie element. Such a tie element is the calcium in a limestone being. calcined to lime and converted to a lime product, or the. ash in a coal which is coked or burned to form a refuse.
Are rafter ties necessary?
Rafter ties are always required unless the roof has a structural (self-supporting) ridge, or is built using engineered trusses. A lack of rafter ties is a serious structural issue in a conventionally framed roof. In most homes, the ceiling joists also serve as the rafter ties.
What is tie in column?
The term tie is used to define the transverse reinforcement provided in column where the primary mode of load transfer is compression. Here the requirement of transverse reinforcement is primarily to prevent the premature buckling of individual bar and to confine the concrete in core.
Where are ties used?
These ties are used to connect external load bearing elements to the structure certain levels. Therefore, all external loads bearing members such as walls and columns are to be tied or anchored into structure at each roof or floor level horizontally.
What is a rebar tie?
It is the type of tie most often used for horizontal surfaces, such as reinforced concrete foundations, and the rebar rests on chairs, cushions or pads to keep it elevated above the dirt.

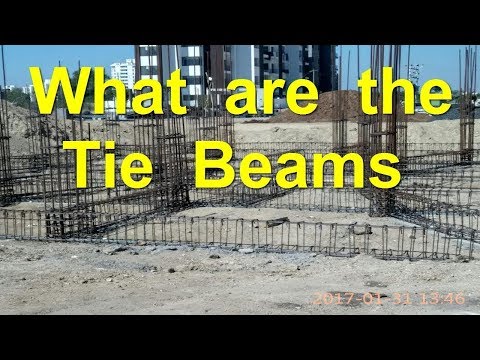

Why do we use tie beams?
The main function of the tie-beam is to act as a length breaker for the column when the ceiling height is greater than the normal height. In such situations, a tie-beam joins the columns to reduce their efficient size and slenderness ratio. Plinth beams are involved in all types of load transfer.
What is the area of tie?
It is the express intent of the parties that the Area as defined herein is the area where the Executive performs or performed services on behalf of the Employer under this Agreement as of, or within a reasonable time prior to, the termination of the Executive’s employment hereunder.
Where is tie beam located?
Tie beam is a beam that connects roof trusses to two or more columns, rafters, or at any height above ground level to make the entire structure more rigid and stable at the foundation. Tie beams are usually located at the roof truss, floor level and a plinth.
What is propping in construction?
What is Propping? Propping is a temporary structure (also know as temporary works propping or construction propping) that is used to support a load. Propping may be required at any stage, including construction stage, maintenance / repairs, and decommissioning or demolition.
What makes a frame structure strong?
Frame structures can be made stronger by using struts. A strut is a solid bar joined into a structure to make it more stable. Struts are used in roof trusses, bridges, cranes and pylons. Skeletons are frame structures made of a system of struts.
