The D flip-flop is a clocked flip-flop with a single digital input ‘D’. Each time a D flip-flop is clocked, its output follows the state of ‘D’. The D Flip Flop has only two inputs D and CP. The D inputs go precisely to the S input and its complement is used to the R input.
In this post
What are D-type flip flops used for?
The D-type flip-flop is a synchronous sequential circuit that can be used to store the value of a single binary digit. The flip-flop has two external inputs: a data signal (D,D) and a clock signal. It also has an internal loop, which allows the previous output value to be stored.
What are D flipflops?
Glossary Term: D Flip-Flop
Definition. A D (or Delay) Flip Flop (Figure 1) is a digital electronic circuit used to delay the change of state of its output signal (Q) until the next rising edge of a clock timing input signal occurs.
What is D flip-flop in computer architecture?
D flip-flop operates with only positive clock transitions or negative clock transitions. Whereas, D latch operates with enable signal. That means, the output of D flip-flop is insensitive to the changes in the input, D except for active transition of the clock signal.
What is D latch and D flip-flop?
The difference between a D-type latch and a D-type flip-flop is that a latch does not have a clock signal to change state whereas a flip-flop always does. The D flip-flop is an edge triggered device which transfers input data to Q on clock rising or falling edge.
Why it is called D flip-flop?
The D flip-flop is a clocked flip-flop with a single digital input ‘D’. Each time a D flip-flop is clocked, its output follows the state of ‘D’.
What is the other name of D flip-flop?
The D flip-flop is widely used. It is also known as a “data” or “delay” flip-flop. The D flip-flop captures the value of the D-input at a definite portion of the clock cycle (such as the rising edge of the clock). That captured value becomes the Q output.
What is D flip-flop truth table?
What is D Flip Flop Truth Table ? The truth table of the d flip flop shows every possible output of the d flip-flop with the all possible combination of the input to the d flip flop, where Clock and D is the input to the D flip-flop and Q and Qbar is the output of the D flip-flop.
What is the standard form of D flip-flop?

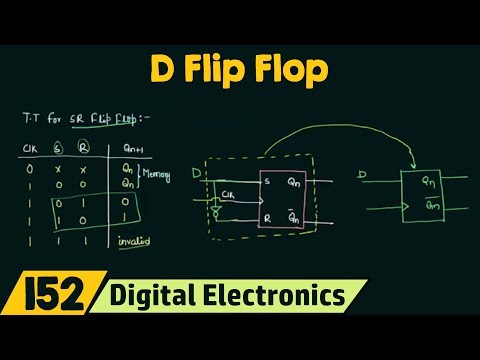

The simplest form of D Type flip-flop is basically a high activated SR type with an additional inverter to ensure that the S and R inputs cannot both be high or both low at the same time. This simple modification prevents both the indeterminate and non-allowed states of the SR flip-flop.
How do you wire a D flip-flop?
D flip flop has another two inputs namely PRESET and CLEAR. A HIGH signal to CLEAR pin will make the Q output to reset that is 0. Similarly a HIGH signal to PRESET pin will make the Q output to set that is 1. Hence the name itself explain the description of the pins.
D Flip-flop:
| INPUT | OUTPUT | |
|---|---|---|
| 1 | 1 | |
| 1 | 1 |
What are the types of flip-flops?
There are basically four different types of flip flops and these are:
- Set-Reset (SR) flip-flop or Latch.
- JK flip-flop.
- D (Data or Delay) flip-flop.
- T (Toggle) flip-flop.
Why D flip-flops are used in registers?
A flip-flop is said to be transparent when the Q output responds immediately to a change on the input. A register is a group of flip-flops used to store a binary word. One flip-flop is needed for each bit in the data word. AND gates can be used to “strobe” or enable data gated into a register.
What is D latch used for?
The D latch is used to capture, or ‘latch’ the logic level which is present on the Data line when the clock input is high. If the data on the D line changes state while the clock pulse is high, then the output, Q, follows the input, D.
Why is D flip-flop better than D latch?
The advantage of the D flip-flop over the D-type “transparent latch” is that the signal on the D input pin is captured the moment the flip-flop is clocked, and subsequent changes on the D input will be ignored until the next clock event.
Which IC is used for D flip-flop?
Here, the given circuit demonstrates the operation of D flip-flop. The flip-flop is built using four 2 input NAND gates, one NOT gate and clock pulse generator is built using multivibrator chip IC NE555.
Where is flip-flop used?
These are the various types of flip-flops being used in digital electronic circuits and the applications of Flip-flops are as specified below.
- Counters.
- Frequency Dividers.
- Shift Registers.
- Storage Registers.
- Bounce elimination switch.
- Data storage.
- Data transfer.
- Latch.
How do you calculate D flip-flop?
Hence the characteristic equation for D flip flop is Qn+1 = D. However, the output Qn+1 is delayed by one clock period. Thus, D flip flop is also known as delay flip – flop.
D Flip Flop Excitation Table.
| Qn | Qn+1 | D |
|---|---|---|
| 1 | ||
| 1 | 1 | 1 |
Is D flip-flop synchronous or asynchronous?
The normal data inputs to a flip flop (D, S and R, or J and K) are referred to as synchronous inputs because they have an effect on the outputs (Q and not-Q) only in step, or in sync, with the clock signal transitions.
How many inputs are in D flip-flop?
A D-type flip-flop consists of four inputs: Data input. Clock input. Set input.
What is the advantage and disadvantage of D flip-flop?
The advantage of D flip-flops is their simplicity and the fact that the output and input are essentially identical, except displaced in time by one clock period. Disadvantages of D flip flop :A delay flip flop in a circuit increases the circuit’s size, often to about twice the normal.
What is the difference between SR and D flip-flop?
1) RS flip flop
The basic NAND gate RS flip flop circuit is used to store the data and thus provides feedback from both of its outputs again back to its inputs. The RS flip flop actually has three inputs, SET, RESET and clock pulse. A D flip flop has a single data input.
