It consists of added concrete with longitudinal and transverse reinforcement around the existing column. Jacketing is the process whereby a section of an existing structural member is restored to original dimensions or increased in size by encasement using suitable materials.
In this post

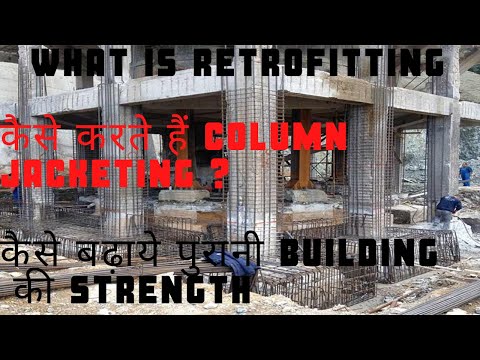

How do you jacket a column?
Steel Jacketing Process
Removing the concrete cover. Cleaning the reinforcement steel bars using a wire brush or a sand compressor. Coating the steel bars with an epoxy material that would prevent corrosion.
How is jacketing done?
Jacketing is a technique used to increase the strength of existing structural members (e.g. Columns, Beams etc.) by providing a “Jacket” of additional material around the existing member. This additional material can be of several types e.g. concrete, steel or FRP etc.
What are the different types of jacketing?
The jacketing of columns is generally carried out by two methods: (i) reinforced concrete jacketing and (ii) steel jacketing. REINFORCED CONCRETE JACKETING: Reinforced concrete jacketing can be employed as a repair or strengthening scheme.
Which method is used for strengthening of column?
Hence, the current research studied the repairing and strengthening of square RC columns by applying two concrete jacketing types: using ultrahigh-performance fibre-reinforced self-compacting concrete (UHPFRSCC) and normal strength concrete (NSC) as jacketing materials with three methods of surface roughening, i.e.,
What is the difference between retrofitting and jacketing?
Retrofitting is the modification of existing structures to make them more resistant. Jacketing is the most popularly used method for strengthening of building columns. Jacketing consists of added concrete with longitudinal and transverse reinforcement around the existing column.
How do I repair a damaged column?
Methods of Concrete Column Repair for Damages and Cracks
- Unloading Columns.
- Redistribution of the Load.
- Supplemental Reinforcing Steel.
- Concrete Removal.
- Corroded Reinforcing Steel.
- Corroded Ties.
- Low-strength Concrete.
What is retrofitting of column?
The retrofit technique involves external prestressing of concrete columns in transverse direction to improve their seismic performance in terms of strength and deformability. Typical rectangular columns with substandard shear design and details have been tested with and without seismic retrofitting.
Is code for column jacketing?
IS 15988:2013
The Jacketting of the existing building is carried out by using IS 15988:2013. This code also provides the data for retrofitting of the buildings by means of adding shear wall and bracings.
How do you fix a spalling concrete column?
Repairing Process of Spalling of Concrete
- Clean Spalled Concrete Area. Ad.
- Remove Loose Concrete. Remove loose and broken concrete from the area using hammer and chisel.
- Clean and Coating Corroded Steel Bars.
- Apply Repair Material Mixture.
- Finishing.
- Curing.
- Apply Pain or Coat on Repaired Surface.
How do you strengthen concrete?
One of the best ways to strengthen concrete is to start with the concrete mixture. By adding more cement to your mixture you’ll end up with a stronger final product. There are many different types of concrete mixtures out there, some of which are specifically designed to create stronger concrete.
How do you add reinforced concrete columns to an existing building?
The procedure of adding reinforced concrete columns is by marking out all the points to add columns. The walls and roofs are supported using props and bracing. The columns should be place at all building corners and any load bearing walls intersections. The wall is cut carefully up to the beam level.
What are the four ways to strengthen structures?
- Making Structures Strong: The Beam.
- On its own, a beam may not be able to support a large load.
- Making Predictions.
- I-Beams.
- Corrugation.
- Concrete beams are often strengthened with steel reinforcing rods.
- Figure 2 A steel I-beam is used to provide structural strength.
- Reading for Meaning.
Which is a technique used to reinforce and strengthen?
Jacketing is one of the popular technique used for strengthening reinforced concrete structures. It is mostly used for strengthening the R.C columns. By which, axial strength and stiffness of the original column is increased.
What is FRP jacketing?
FRP jacketing technology (FRP reinforcement technology) is divided into fiber cloth reinforcement technology and fiber plate reinforcement technology. It is a new type of technical method of reinforcement and repair.
How do you strengthen an old building?
Step1 – Excavate the surcharge soil around the footing. Step2 – Roughen the top surface of the base slab for proper bond between the poured concrete and existing one. Step3 – Drilling holes in the existing concrete of footing to install dowels. Step4 – Fastening the new steel bars with the dowels using steel wires.
What are the types of retrofitting?
Some of the commonly used methods of retrofitting of structure are:
- Adding Steel Bracing.
- Jacketing Method.
- External Plate Bonding.
- Base Isolation Technique.
- Mass Reduction Technique.
- Wall Thickening Technique.
- Fiber Reinforced Polymer (FRP)
- Adding Shear Wall.
What do you mean by retrofit?
Definition of retrofit
transitive verb. 1 : to furnish (something, such as a computer, airplane, or building) with new or modified parts or equipment not available or considered necessary at the time of manufacture. 2 : to install (new or modified parts or equipment) in something previously manufactured or constructed.
Why do columns crack?
Splitting cracks in concrete columns initiated as a result of reaching its maximum load carrying capacity. The ultimate Load carrying capacity of the column surpassed when concrete cross section is inadequate or reinforcement ratio is insufficient or combination thereof.
What are the modern techniques of retrofitting?
Recent Retrofitting Methods
These techniques includes providing additional damping using dampers (Elasto-plastic dampers, friction dampers, tuned mass and tuned liquid dampers, visco-elastic dampers, lead extrusion dampers etc.) and techniques such as base isolation which are introduced to take care of seismic control.
What is another word for retrofit?
modernize, modernise, overhaul.
