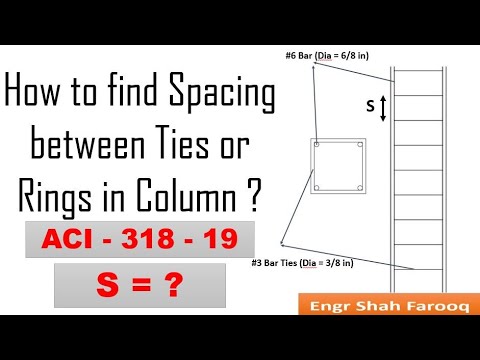

How Do You Determine The Spacing Of A Tie In A Column?

For column tie spacing, not to exceed 16db of vertical bars, 48db of ties, Bs or 150mm, whichever is lesser.

As per code provision the stirrups spacing should be least among the :

1. Least lateral dimension of the column.
2. 16 times the diameter of longitudinal main bar.
3. Not more than 300 mm c/c.

What is the spacing of ties in column?

On general standard spacing of 6″ to 7″ (150 – 180mm) between stirrups provided at middle and 4″ to 5″ (100 – 125mm) at end support of column. Spacing of stirrups near the support end is minimum due the maximum shear forces of the supports.

How are column ties calculated?

Cutting Length for Circular Stirrup:

1. Considered the column dia as D = 1000mm.
2. Adopting Dia of Bar used for stirrups is d =8mm.
3. Deducting the concrete cover from diameter of column. D = 1000-25-25 = 950mm.
4. Circumference length of Ring = πD = 950 x 3.14 = 2983mm.
5. Total Length of the hook:
6. Total Length of Bends:

What is the minimum spacing of stirrups in column?

The spacing of vertical stirrups should be 100 mm c/c through out the length of lapping. The minimum size of stirrups should be 8 mm diameter. »

How do you calculate the number of stirrups in a column?

HOW TO CALCULATE THE QUANTITY OF STEEL IN COLUMN (BBS)

1. We have a column.
2. Height = 3 meter.
3. Cross section = 500 x 400 mm.
4. No of vertical bars = 6 nos.
5. the diameter of the vertical bar = 16 mm.
6. Diameter of stirrup = 8 mm.
7. stirrups center to center spacing = @150 or @ 200 mm.
8. The calculation was to proceed in two steps.

How many lateral ties are in a column?

Lateral Tie Arrangement for 16 bars with cross ties. A 16 bars column arrangement as per ACI 315 is shown above. Here bundled bars can. For 16 bars, 4 bundled bars can be provided at each corner.

How do you calculate the number of rings in a column?

and weight will be calculated by thumb rule (D)sqr/162 for per meter length.

1. vellingiri. Answered On : Nov 5th, 2015.
2. Assume column size (10×9″x9″), no. of ring=10/8″+1=16, and ring length=(4*9″+6″)=36″

What is the maximum spacing of lateral ties in a column?

The spacing of lateral ties should be 100 mm c/c through out the length of lapping. of vertical stirrups should be 8 mm diameter. The spacing should be 100 mm c/c at 1/3 span of beam at supports and 150 mm c/c at remaining mid span of beam.

What is the maximum spacing of stirrups?

Detailed Solution. As per IS 456:2000, the spacing between two successive stirrups in reinforced concrete beam shall not be less than 100 mm. Maximum size of the bar or whichever is greater.

What is the expression used to determine the spacing of stirrups?

So we get τ _c =0.5298 N/mm ². V _us for vertical stirrups is given by Eq. 13.39. Assuming 2-legged stirrups of 8 mm dia., we get A _sv =100.53 mm ².

What is the difference between ties and stirrups?

Stirrups are used for shear and torsional reinforcement and have many different sections based on the need. You might have 4 stirrups spaced at 4-6″ in a large beam, or a single stirrup. Ties are typical in compression members like columns, and can be spaced apart or a continuous spiral.

What is the hook formula in stirrups?

And the formula is, = (4 × arm length) + (2 × hook length) — bend deduction.

How do you calculate hook length?

The following standards are most important when calculating hook length and bend lengths at corners, as well as finding the cutt length of stirrups.

1. 1 Hook length = 9d or 75mm.
2. 45° Bend length = 1d.
3. 90° Bend length = 2d.
4. 135° Bend length = 3d.
5. 180° Bend length = 4d.

What is the recommended bars for column?

Best mm of column for 1 storey (G+0)/2 storey (G+1)/3 storey (G+2) building:- Using thumb rule, the load bearing structure, the best mm of steel bar used in rcc column for 1 storey/(G+0) building, it could be 12mm dia of steel bar, for 2 storey/G+1 building, it could be combination of 12mm & 16mm dia of steel bar and

What are the design criteria for lateral ties in a column?

The diameter of the lateral ties should not be less than 1/4th of the diameter of the largest longitudinal bar and in no case less than 6 mm. So answer is 6mm. Minimum dimension is 6.0 mm. The tie diameter = 1/4th of the main bar.

What is the minimum and maximum spacing of shear reinforcement in columns?

What Is The Minimum Bar Spacing In Reinforced Column? The minimum gap between two reinforcement bars should be equal to the maximum aggregate grain dimension with a margin of at least 5 mm. For greases, the maximum total grain dimension is 32 mm for normal concrete and 16 mm for self-compacting concrete.
